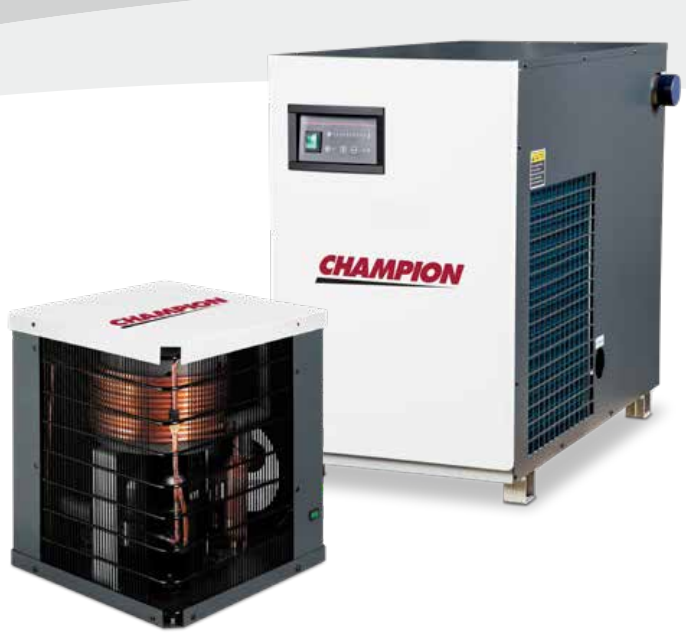

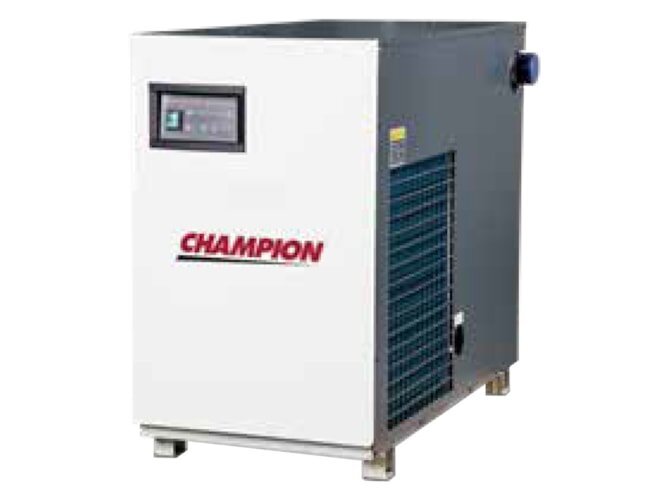

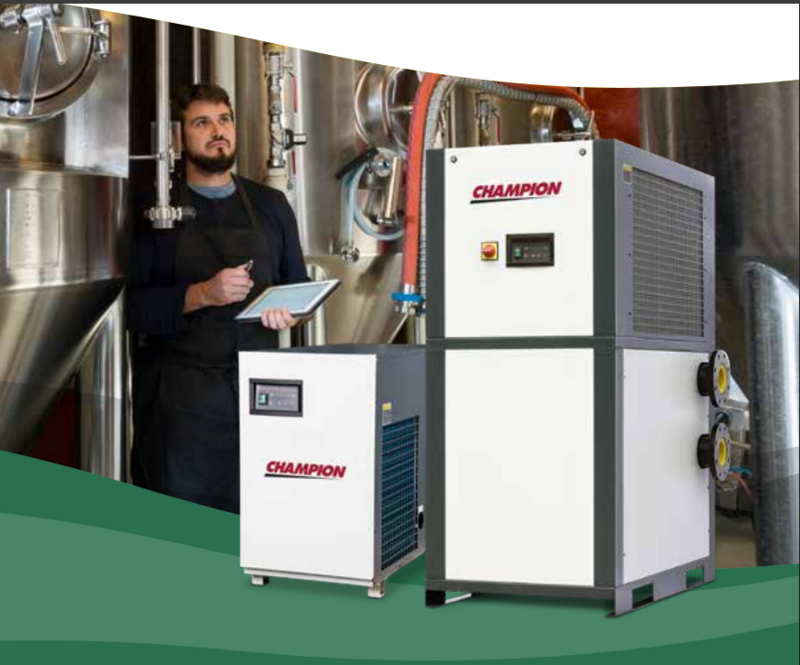

Champion CGD Series
10-1200 SCFM Non-Recyling Air Dryer
High-Performance Refrigerated Air Drying for Demanding Compressed Air Systems
When air quality and reliability matter most, the Champion CGD Series delivers. Designed to handle flows from 10 to 1,200 SCFM, these non-cycling refrigerated air dryers provide clean, dry air for every level of compressed-air operation, from small automotive shops to large industrial facilities. By removing moisture and contaminants before they enter your system, the CGD Series helps protect downstream tools, extend equipment life, and maintain optimal air pressure and efficiency.
As part of the Champion Pneumatic family, each CGD dryer is built for long-term performance, simple serviceability, and consistent dew-point control, all backed by one of the most trusted names in air treatment.
Features & Benefits
- Wide Flow Range: Handles from 10 to 1,200 SCFM to match diverse compressor setups.
- Consistent 38°F Pressure Dew Point: Prevents corrosion, protects air tools, and ensures dry, clean air at all times.
- Energy-Efficient Heat Exchanger: Compact, all-in-one aluminum core design provides superior thermal transfer and minimal pressure drop.
- Reliable Refrigeration Circuit: Uses environmentally friendly refrigerants for stable cooling and long-term operation.
- Electronic Controller: Intuitive microprocessor system displays dryer status, dew-point monitoring, and maintenance alerts.
- Easy Maintenance Access: Front-panel service design allows quick access to all key components.
- Compact Footprint: Designed to fit tight mechanical rooms or shop environments without sacrificing performance.
- Durable Construction: Corrosion-resistant aluminum heat exchangers and powder-coated steel cabinet ensure long service life.
Technical Highlights
- Flow Capacity: 10 – 1,200 SCFM
- Max Operating Pressure: Up to 232 PSIG
- Inlet Air Temperature: Maximum 122°F (50°C)
- Dew Point: 38°F (3°C) ISO Class 4
- Refrigerant: Environmentally friendly R-134A / R-407C (depending on model)
- Voltage Options: 115 V / 1 PH / 60 Hz to 460 V / 3 PH / 60 Hz models available
- Connection Sizes: ¼" – 3" NPT (varies by capacity)
Your Partner for Complete Compressed Air Solutions
At Quality Automotive Equipment & Service (Quality AES), we provide more than just industry-leading air dryers. We deliver the expertise, installation, and ongoing service your shop needs to keep air systems running at peak performance. Our certified technicians are trained on Champion Pneumatic products and can design, install, and maintain complete compressed-air systems tailored to your operation.
Contact us today to request a quote or to learn more about how the Champion CGD Series can improve your air quality and equipment reliability.
