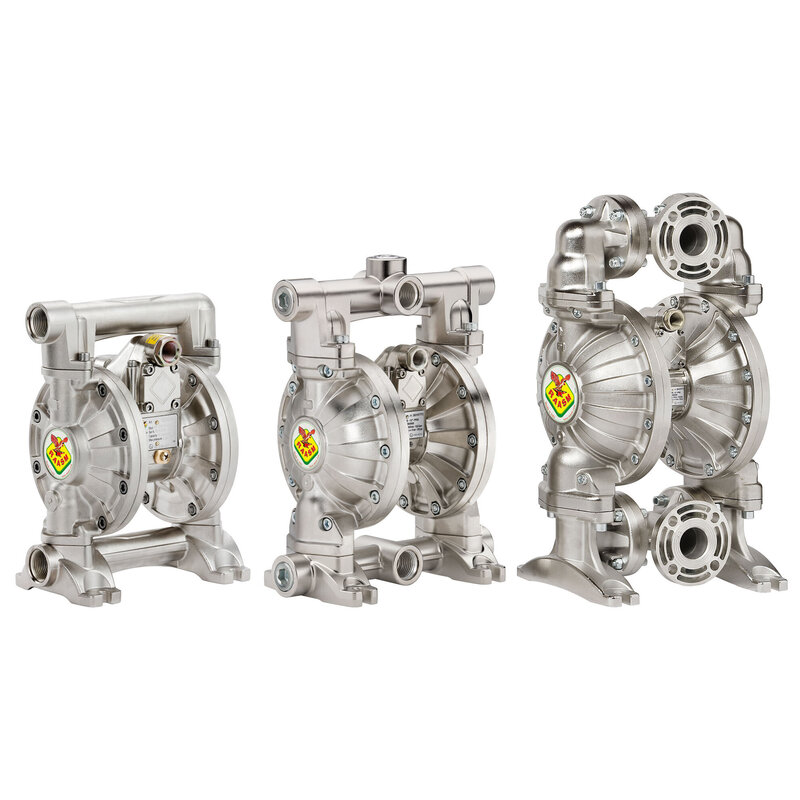

RAASM Aluminum Diaphragm Pumps
Air Operated Oil Pumps
Durable, Air-Operated Pumps for Reliable Fluid Transfer
Product Overview
RAASM Aluminum Diaphragm Pumps are engineered for efficient, dependable fluid transfer across automotive, industrial, and commercial applications. With a full aluminum body, these air-operated pumps deliver exceptional corrosion resistance, reduced weight, and long service life compared to traditional cast-iron or steel constructions. Designed for oils, diesel, water, coolants, and select chemicals—depending on diaphragm and seat materials—the RAASM aluminum pump series provides a versatile, low-maintenance solution for facilities requiring consistent flow, dry-run capability, and rugged durability.
Available in multiple configurations and sizes, these pumps integrate seamlessly into lube systems, service centers, wash stations, fluid management systems, and industrial processing environments.
Key Features
- Full Aluminum Construction: Lightweight yet highly durable aluminum body provides excellent corrosion resistance and long-term reliability in demanding environments.
- Air-Operated Double Diaphragm Design: No motor to service—ideal for oily, dirty, or harsh work environments where electric pumps often fail prematurely.
- Wide Fluid Compatibility: Supports oils, diesel, water-based fluids, coolants, and select solvents depending on diaphragm, ball, and seat material.
- Multiple Material Options for Internals: Diaphragms, balls, and seats available in EPDM, NBR, Hytrel®, Santoprene™, PTFE, and more to match fluid chemistry requirements.
- High Flow Capacity: Certain models can deliver flow rates up to 480 L/min, making them suitable for high-demand fluid transfer.
- Self-Priming & Dry-Run Safe: Diaphragm pump design allows safe dry operation and strong suction lift for flexible installation.
- Broad Size & Port Options: Offered in ½", 1", 1 ½", and 2" models to accommodate various flow-rate, viscosity, and pressure needs.
- Low Maintenance, Long Service Life: Minimal moving parts and fully serviceable internal components reduce downtime and repair costs.
Technical Highlights
(Values vary by model — reference datasheets for exact specifications.)
- Max Flow Rate: Up to approximately 480 L/min (model dependent)
- Max Working Pressure: Up to ~8 bar
- Max Fluid Temperature: Up to ~100°C depending on diaphragm material
- Air Pressure Range: Typically 2–6 bar for optimal performance
- Suction Lift: Up to ~5 m dry; ~7.5 m wet (model dependent)
- Body Material: Full aluminum construction
- Port Options: ½", 1", 1½", 2" inlet/outlet connections
- Internal Material Options: EPDM, NBR, Hytrel®, Santoprene™, PTFE, etc.
Why Choose Quality AES for RAASM Pumps?
Quality Automotive Equipment & Service (AES) is a trusted partner for fluid-handling equipment, offering expertise beyond product sales. We help dealerships, industrial plants, fleet garages, and service centers choose the correct RAASM diaphragm pump based on fluid type, viscosity, temperature, flow-rate demands, and installation requirements.
Our team at Quality AES provides system layout support, installation, integration guidance, replacement parts, and ongoing service to keep your operations running efficiently. Whether you’re upgrading an existing fluid-transfer system or building a new service facility, Quality AES ensures you receive the right pump and proper support throughout the project.
Contact us today to request a quote, discuss system configuration, or schedule installation support from our team.
