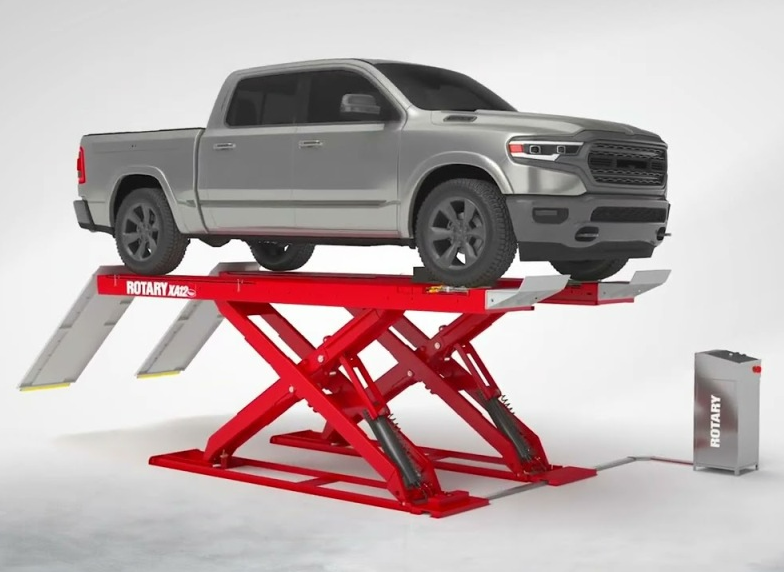

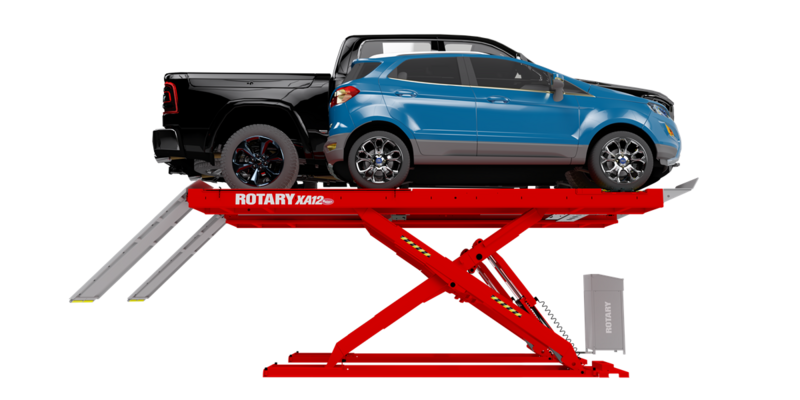

Rotary XA12
12K Alignment Scissor Lift
The Rotary XA12 is a high-performance, open-center scissor alignment lift engineered for advanced wheel service, general repair, and ADAS calibration workflow environments. With a 12,000-lb. lifting capacity, true vertical lifting, integrated alignment capabilities, and a low-profile design, the XA12 is ideal for modern service bays requiring efficiency, technician safety, and optimized workspace flexibility.
Designed for precision and durability, the XA12 supports today’s most demanding service requirements—from standard alignment work to electric-vehicle service and multi-point inspections. Its compact footprint and smooth, unobstructed access points make it a versatile addition to any dealership, tire center, or independent repair facility.
Key Features
- 12,000-lb. lifting capacity for passenger cars, trucks, and light-duty commercial vehicles
- Open-center design provides full under-vehicle access with no crossbeams
- True vertical lifting for precise positioning and equipment alignment
- Multiple working height positions for technician comfort and workflow optimization
- Integrated rear-sliding plates and front recessed turn-plate pockets (alignment-ready)

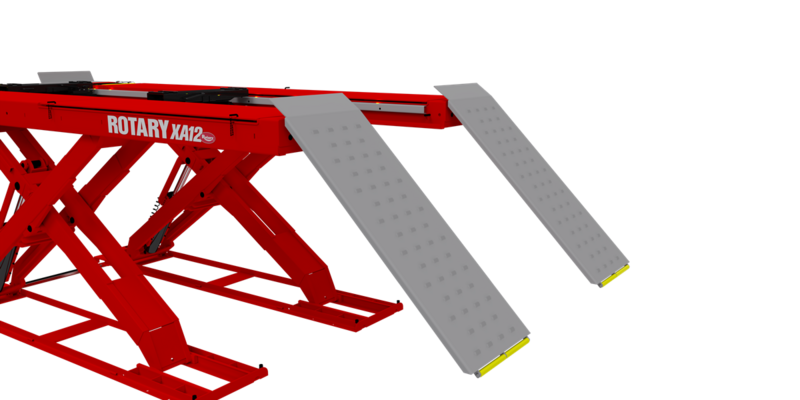

- Low-profile drive-on ramps for easy loading of low-clearance vehicles
- Electro-hydraulic operation with smooth, quiet lift movement
- Heavy-duty corrosion-resistant construction for long-term durability
Technical Highlights
- Capacity: 12,000 lbs.
- Rise Height: 73.5 inches (approx., depending on model configuration)
- Platform Length: 194.5 inches
- Platform Width: 24.75 inches per platform
- Overall Width: 87.5 inches
- Power Requirements: 208/230V, 1-phase
- Lift Type: Open-center, true-vertical scissor
- Alignment-Capable: Rear slip plates + front turn-plate pockets
- Mounting Options: Surface-mounted
Applications
- Dealership service departments
- Tire and alignment shops
- Fleet maintenance operations
- EV service bays
- Multi-bay high-volume automotive repair facilities
Why Choose the Rotary XA12 from Quality AES?
We invite you to learn more about Quality AES or reach out to us at 913-205-1350 to talk to our technicians about all our Rotary lift capabilities.
