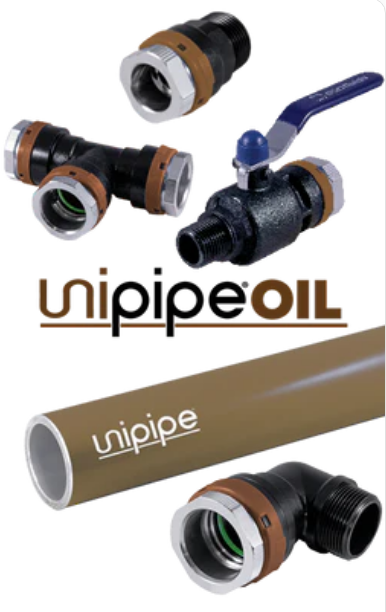

Unipipe Oil System
Aluminum Oil Piping & Fittings
Reliable, Leak-Free Piping for Efficient Oil Delivery Systems
The Unipipe Oil System brings the same trusted modular aluminum design found in Unipipe’s compressed-air lineup to oil, lubricant, and fluid-handling applications. Built for performance, durability, and clean delivery, Unipipe Oil piping and fittings create a robust, leak-free infrastructure for service bays, automotive workshops, and industrial facilities.
At Quality Automotive Equipment & Service (Quality AES), we supply and install complete Unipipe Oil systems that deliver high-volume flow with minimal pressure loss, helping you move oil, gear lube, and other fluids more efficiently through your shop.
Features & Benefits
- Optimized for Oil & Fluid Distribution: Designed specifically for oil, lubricant, and non-corrosive fluid transport.
- Durable Aluminum Construction: Internal corrosion-resistant finish ensures long service life and consistent fluid purity.
- High Working Pressure: Rated up to 232 PSIG (16 bar), ideal for high-pressure pump and reel systems.
- Fast, Clean Installation: Modular, mechanical design uses secure O-ring fittings—no welding, threading, or adhesives.
- Leak-Free Joints: Precision-machined couplings with double-O-ring seals guarantee long-term reliability.
- Broad Temperature Range: Engineered to perform from –4 °F to 212 °F (–20 °C to +100 °C).
- Scalable System Sizes: Available in 13 pipe sizes (20 mm to 250 mm) to accommodate single-bay shops or large distribution systems.
- Low Maintenance: Smooth-bore aluminum piping minimizes friction loss and prevents buildup or contamination.
Technical Highlights
- Pipe Size Range: 20 mm (¾″), 25 mm (1″), 32 mm (1-¼″), 40 mm (1-½″), 50 mm (2″), 63 mm (2-½″), 75 mm (3″), 90 mm (3-½″), 110 mm (4-½″), 140 mm (5″), 160 mm (6″), 200 mm (8″), 250 mm (10″)
- Working Pressure: Up to 232 PSIG (16 bar)
- Temperature Range: –22 °F to +266 °F (–30 °C to +130 °C) (varies by version)
- Fittings: Aluminum body with stainless hardware and EPDM O-rings for chemical compatibility
- Applications: Oil distribution, lubricant transfer, waste-oil recovery, vacuum, and low-viscosity fluid systems
Why Quality AES for Your Unipipe Oil System
Quality Automotive Equipment & Service provides turnkey Unipipe Oil System design, installation, and service. Our technicians are trained in modular piping assembly and fluid-system layout, ensuring optimal flow and long-term reliability. Whether you’re upgrading a single lube bay or constructing a full-service facility, we’ll help you select the right components, pipe sizes, and routing for your specific oil or fluid requirements.
Contact us today to request a quote, discuss system design, or schedule a professional installation consultation.
